Water Supply Line Repair – Field Demonstration for Water Resources Division

Live Pressure Pipe Repair Using UPS Emergency Bandage Under Harsh UV and Environmental Conditions

Location

Water Resources Division – Demonstration Project
‍

Application Area

2” Pressurised Water Supply Line –
Outdoor UV-Exposed Pipe

Project Overview

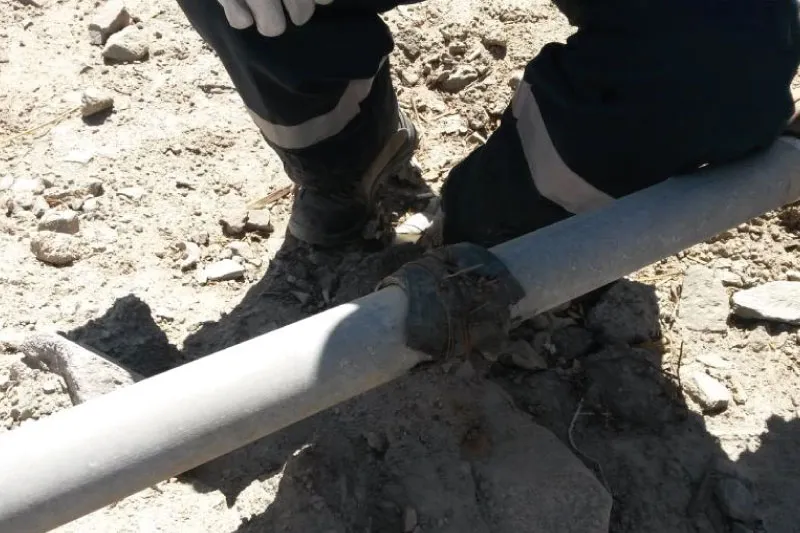

A previously patched pipe section, sealed with elastic bands, had deteriorated due to UV exposure. The failing temporary fix resulted in water loss, pressure drops, and visible degradation. The goal: to showcase the superior performance of UPS THISTLEBOND EMERGENCY PIPE REPAIR BANDAGE in a real-world application under pressure.

Challenges Faced

UV-degraded temporary seals had failed

Pipe remained pressurised during the repair

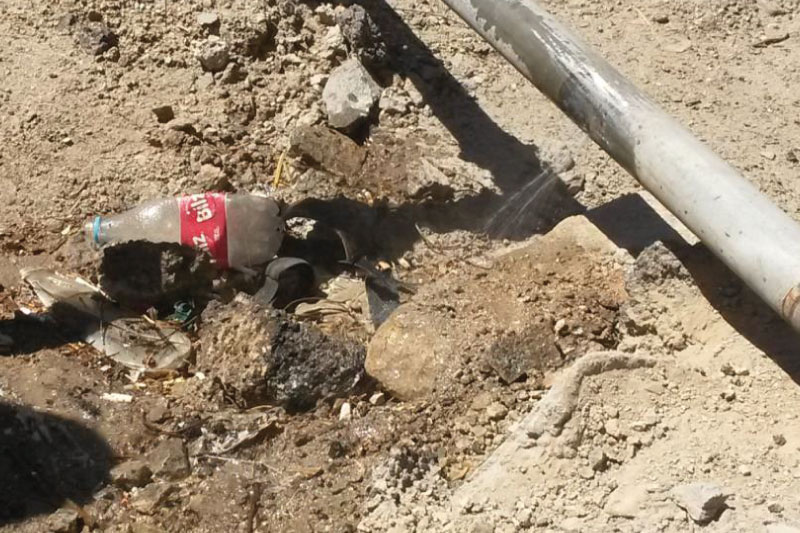

Active water loss and pressure reduction

No option to depressurise or isolate the line

Objectives

Deliver a professional, permanent repair on a live system

Demonstrate UPS bandage capabilities in active field conditions

Reinforce pipe integrity and restore pressure retention

Execute with minimal materials and setup time

Repair Solution & Process

Products Used

UPS THISTLEBOND EMERGENCY PIPE REPAIR BANDAGEUPS THISTLEBOND STICK GRADE METAL

Application Steps

Surface
Preparation

The pipe was cleaned and roughened using a coarse file to ensure good adhesion.
‍
‍

LeakSealing
(Optional)

Where UPS THISTLEBOND STICK GRADE METAL is available, it is recommended to plug the leak before wrapping.
‍

Reinforcement Wrapping

The UPS THISTLEBOND EMERGENCY PIPE REPAIR BANDAGE was soaked in water for 20 seconds to begin the curing reaction.

Application

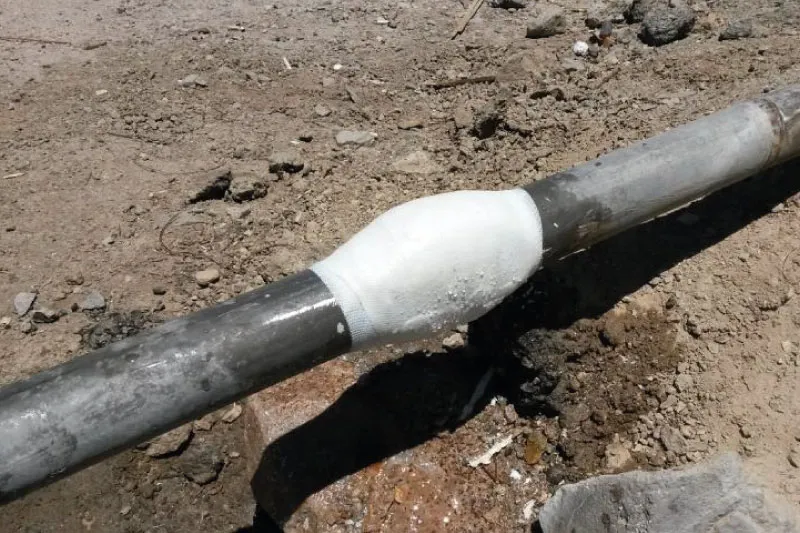

The activated bandage was wrapped tightly in a bandage-style configuration over the damaged area, ensuring proper overlap.

Live Line Considerations

Repair was done while the line was pressurised, without isolation.

Results & Key Benefits

Repair achieved without line shutdown or depressurisation | Full wrap integrity despite active pressure | Resistant to environmental exposure and future degradation | Clean, professional finish — ideal for field applications | Quick, simple demonstration of real-world performance

SUMMARY

Even under pressure, UPS THISTLEBOND solutions prove reliable, easy to use, and highly effective in restoring service — offering long-term protection in even the most basic field conditions.
